Simple Polygon

Simple Polygon is a simple 3d modeler for GameMaker Studio 2+ that is made in GameMaker Studio 2, crazy huh?

So start 3D modeling for your next big project, it's FREE!

Features:

• Turn 3D models into 2D pixel art!
• Export as native GMS2+ buffer
• Export as encoded base64 string(scripts required)
• Export as D3D model for GMS 1.4
• UV Mapping Editing
• Generate UV Mapping Image
• Easy to use object editing and interface
• Unlimited objects(triangles/quads/cubes) as your device can handle

How to import/load our 3D models into GameMaker Studio 2+:

1. Using native buffer functions: export as buffer > buffer_load() >  vertex_create_buffer_from_buffer()

2. Using native buffers but with our scripts: export as buffer >  sp_load_buffer()

3. Saving it as an encoded Base64 buffer and using our scripts: save as base64 string > sp_load_base64()

For GameMaker Studio 1.4 version you can only export as d3d and the use d3d_model_load();

Mouse controls:

• Mouse wheel to ZOOM! [2]
• Left click and drag anywhere not an object will move the camera/uv view
• Right click and drag anywhere not an object will move the camera position

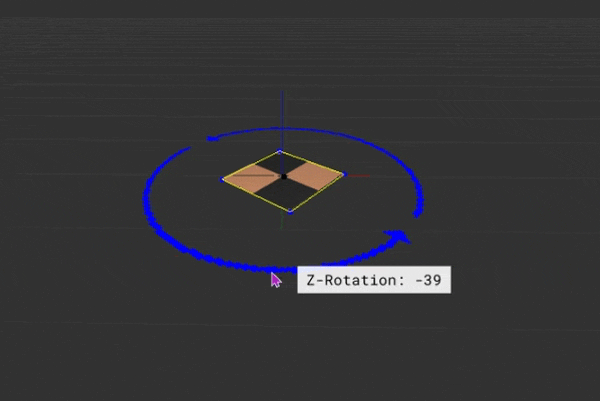

• Left click and drag a point/edge/face with 3D arrows to move it
• Right click when moving a UV point will reset position to previous.
• Right click a point/edge/face will set the camera to that position

Hotkeys:

• TAB - enter/exit UV editing mode
• P - enter/exit model preview model
• ESC (in uv-editing) - reset texture position and zoom
• ESC (in object-editing) - deselect the current object
• DELETE - delete selected object(s)
• CTRL+A - select all objects
• CTRL+S - to save current model to current path(or new path if not set)
• SHIFT (holding) - will allow to quick select objects in 3D view
• CTRL (holding) - will allow to select multiple objects [1]
• CTRL (holding) (cube)- will allow to select the current object cube face
• R - reset 3D camera position to center (0, 0, 0)

[1] - While holding CTRL and SHIFT with a selected cube, you will not be able to select cube face.

[2] - While holdin SPACE you will be able to change Camera Z position and not the Camera Zoom.

Note before using:

- pr_trianglelist is used by default as the primitive and cannot be changed.

- 3d culling is counterclockwise by default and it can be changed in the preferences menu.

- color and alpha are c_white and 1 by default and can't be changed

You can also join our Discord.
